SNT520-617 - 22220K - TSNG520 TIMKEN轴承座
- 品牌： TIMKEN
- 型号： SNT520-617 - 22220K - TSNG520 TIMKEN轴承座
- 类型： 轴承座
- 类型说明：
-
SNT520-617 - 22220K - TSNG520 TIMKEN轴承座产品参数
| 参数 | 数据 | 说明 |
|---|---|---|
| Housing | SNT 520-617 | |
| Bearing | 22220K | |
| Locating Rings (width x OD) | SR180X12 | |
| Seal Type | Double Lip | |
| Seal | TSNG520 | |
| Adapter Sleeve | H320 | |
| Locknut | KM20 | |
| Lockwasher | MB20 | |
| End Cover | EC520-617 | Two seals are required for a thru shaft application. One end cover can be used if application is not a thru shaft design. In this case, only one seal is required. |
| Material | Cast Iron | |
| Housing Mass | 17.6 Kg | |
| Bolt Qty | 2 | |
| Cage Type | EJ | |
| C1 Dynamic Load Rating | 435 | |
| C0 Static Load Rating | 502 | |
| Max Oil Speed | 3800 | |
| Max Grease Speed | 3100 | |
| Shaft Diameter d | 90 mm | |
| A | 160 mm | |
| A1 | 110 mm | |
| G | M24 | |
| H | 218 mm | |
| H1 | 112.0000 mm | |
| H2 | 40 mm | |
| J | 320 mm | |
| Jmax | 326 mm | |
| Jmin | 314 mm | |
| L | 380.0 mm | |
| N | 26 mm | |
| N1 | 32.00 mm |
| 参数 | 数据 | 说明 |
|---|---|---|
| Housing | SNT 520-617 | |
| Bearing | 22220K | |
| Locating Rings (width x OD) | SR180X12 | |
| Seal Type | Double Lip | |
| Seal | TSNG520 | |
| Adapter Sleeve | H320 | |
| Locknut | KM20 | |
| Lockwasher | MB20 | |
| End Cover | EC520-617 | Two seals are required for a thru shaft application. One end cover can be used if application is not a thru shaft design. In this case, only one seal is required. |
| Material | Cast Iron | |
| Housing Mass | 17.6 Kg | |
| Bolt Qty | 2 | |
| Cage Type | EJ | |
| C1 Dynamic Load Rating | 435 | |
| C0 Static Load Rating | 502 | |
| Max Oil Speed | 3800 | |
| Max Grease Speed | 3100 | |
| Shaft Diameter d | 90 mm | |
| A | 160 mm | |
| A1 | 110 mm | |
| G | M24 | |
| H | 218 mm | |
| H1 | 112.0000 mm | |
| H2 | 40 mm | |
| J | 320 mm | |
| Jmax | 326 mm | |
| Jmin | 314 mm | |
| L | 380.0 mm | |
| N | 26 mm | |
| N1 | 32.00 mm |

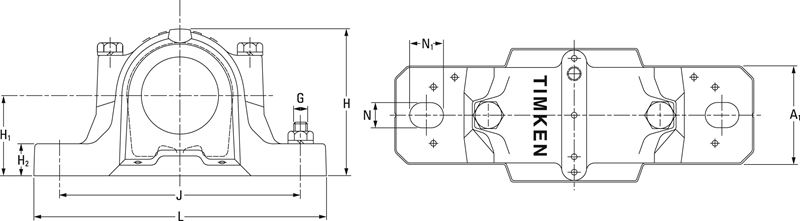

SNT520-617 - 22220K - TSNG520 TIMKEN轴承座图纸
SNT520-617 - 22220K - TSNG520 TIMKEN轴承座说明
专业销售TIMKEN轴承座SNT 520-617 - 22220K - TSNG520，并且为客户提供属于TIMKEN轴承座。本公司专业提供TIMKEN轴承座全系列产品。并且提供对此类产品的球总体内径(外径)、单向推力轴承、化学气相沉淀、过程审核、保持架爪、等具体参数。构成元素：SNT 520-617 22220K TSNG520 。类似型号：UCT208-25、 SNW-3026 x 4 1/2、 紧定套 HA3126 QAAPL20A100S、 558 - 552-B、 轴承附件 SNW-40 x 7 1/4、 推卸套 AH3076G、 TIMKEN SNT 518-615 - 21315K - TSNG615 TIMKEN HE2334 TIMKEN QAACW13A060S
产品应用：物料运输 、石油和天然气 、海洋能源 、铁路 、轴承制造商。应用设备：包装机械、隔膜泵、月饼机、其他电热设备、机床、超声波清洗设备、矿业、冶金设备、测量工具/量具、发动机配件、自动包装机。
